Shore A00~A000 level PU gel
發(fā)布日期：2025-01-10 瀏覽次數(shù)：241
Component:
WINNATE-001A
COHOL-001B
Application:

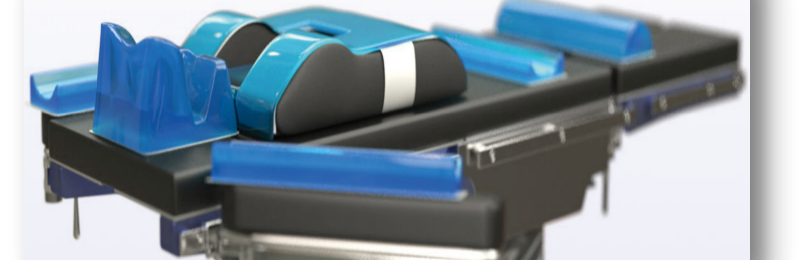

·Positioning pad for orthopedic surgery.
·Flexible and/or visible packing for precise device.
·Luxury/leisure/healthycare stuffs for bedding and seat.
Advantage:
·Supersoft, nearly non-stress feel
·Non-plasticizer added
·Visco-elastic and extra-slow stress-response
·Self-healing, self-adhesive for packing with film
Picture:
Process parameter:
|
Items |
WINNATE-001A |
COHOL-001B |
|
Appearance |
Transparent liquid |
Transparent liquid |
|
Viscosity@25℃ |
4300 mPa·s |
1100 mPa·s |
|
Material temperature |
35~45℃ |
|
|
Mold temperature |
35~45℃ |
|
|
Room temperature |
- |
|
|
Impregnting temperature |
- |
|
|
Weight ratio for mixing |
A:B=17~25:100 |
|
|
Non-bubble mixer |
45 sec |
|
|
Pot life |
>20 mins |
|
|
Gelling time |
<120 mins |
|
|
Curing |
- |
|
|
Non-tacky time |
- |
|
Typical property:
|
Items |
WINNATE-001A |
COHOL-001B |
|
Hardness |
Shore A000/15~Shore A00/15 @25℃ |
|
|
Tensile/Elongation |
—— / >>100% |
|
|
Tear |
- |
|
|
Adhesive strength |
- |
|
|
Compression strength |
- |
|
|
Bending strength |
- |
|
|
Adhesion strength (via pull & shear) |
||
|
Al/Al |
- |
|
|
PET/PET |
- |
|
|
PC/PC |
- |
|
|
PMMA/PMMA |
- |
|
|
PVC/PVC |
- |
|
|
Nylon/Nylon |
- |
|
|
PP/PP |
- |
|
